240 PLUS

Blister Packing Machine Model.

Blister Packing Machine

Innojet's Lab & Pilot Granulation Equipment: Leading the Way

Machine View
Machine View

Key Features

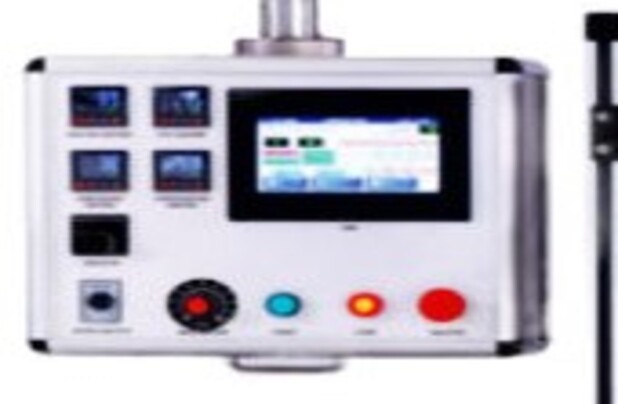

Feature 1
Control of the four critical variables during the granulation: mixing speed / binding liquid flow

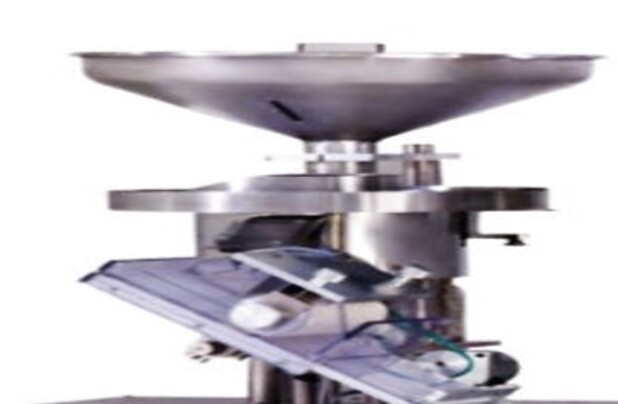

Feature 2
Three interchangeable bowls of 2, 5, and 10 litres.

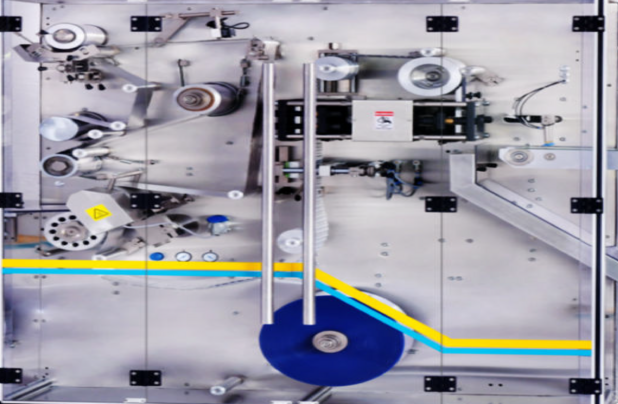

Feature 3
Equipped with Siemens PLC and touch panel. This allows to optimise the process and apply relevant parameters.

Technical Specifications

DESCRIPTION Model: 240 Plus
PVC Base Film Width 210 mm Max.
PVC Base Film Thickness 0.25 - 0.4 mm Max.
Sealing Foil Width 206 mm Max.
Sealing Foil Thickness 0.02 - 0.04 mm Max.
Format Area 210 mm X 100 mm
Forming Depth 16 mm
Max. Output Round Shape 240 packs/min & Oval Shape 140 packs/min
Machine Dimensions in mm L: 3100 | W: 1100 | H: 2000
Machine Weight 1150 kg. (Approx)

Packaging Materials

Base Material: PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP

Lidding Material: Aluminum with Heat Sealable Lacquer Coating.

Machine Layout

Machine Layout

Utilities Requirement

Compressed Air: 7 CFM dry air at pressure 6.0 kgs / cm²

Water Cooler: 150 Liters / Hour Temperature 15°C to 20°C @pressure 2.5 kg/cm²

Electrical Power: 7.5 kW, 415 VAC, 50 Hz, 3 Phase + N+E.

Earthing Cable: Copper 2.5 mm² (Minimum)
