VIALVAC II

Thermo-form Blister Packing Machine

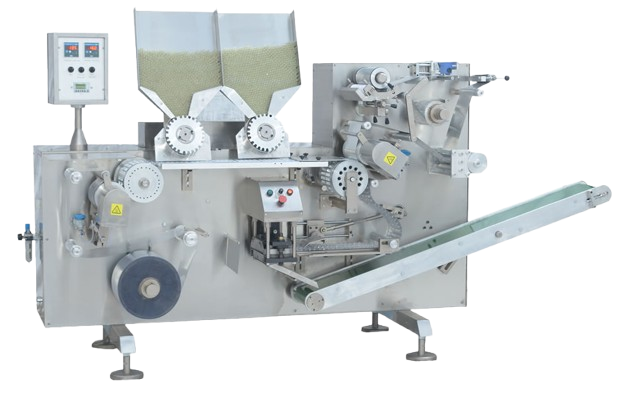

Blister Packing Machine

Innojet's Lab & Pilot Granulation Equipment: Leading the Way

Machine View
Machine View

Key Features

Feature 1
Control of the four critical variables during the granulation: mixing speed / binding liquid flow
Feature 2
Three interchangeable bowls of 2, 5, and 10 litres.
Feature 3
Equipped with Siemens PLC and touch panel. This allows to optimise the process and apply relevant parameters.

Technical Specifications

DESCRIPTION Model : VIALVAC-II
PVC Base Film Width 210 mm Max.
PVC Base Film Thickness 0.25 - 0.4 mm Max.
Sealing Foil Width 206 mm Max.
Sealing Foil Thickness 0.02 - 0.04 mm Max.
Format Area 210 mm X 126 mm
Forming Depth 20 mm
Max Output 35 Strokes/minutes
Machine Dimensions in mm L : 2900 | W : 1100 | H : 1800
Machine Weight 1100 kg. (Approx)

Packaging Materials

Base Material: PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP

Lidding Material: Aluminum with Heat Sealable lacquer Coating, Glassine paper.

Machine Layout

Machine Layout

Utilities Requirement

Compressed Air: 7 CFM dry air, 6.0 kgs/cm² pressure

Water Cooler: 150 Liters/Hour, 15°C - 20°C, 2.5 kgs/cm²

Electrical Power: 7.5 kW, 415V, 50 Hz, 3 Phase

Earthing Cable: Copper 2.5 mm² (Minimum)
