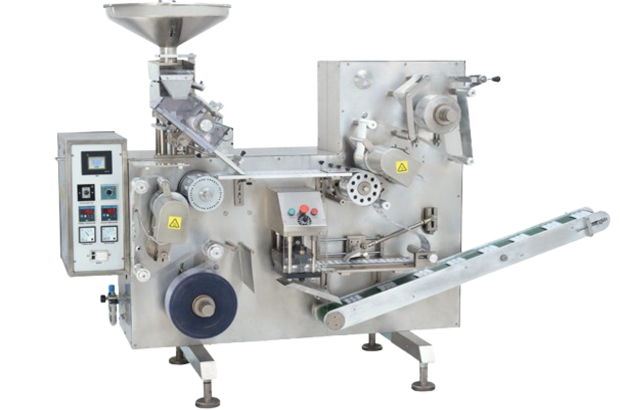

150 PLUS

Blister Packing Machine Model.

Blister Packing Machine Model.

Innojet's Lab & Pilot Granulation Equipment: Leading the Way

150 PLUS
150 PLUS

Key Features

Feature Image
Control of the four critical variables during the granulation: mixing speed / binding liquid flow
Feature Image
Three interchangeable bowls of 2, 5, and 10 litres.
Feature Image

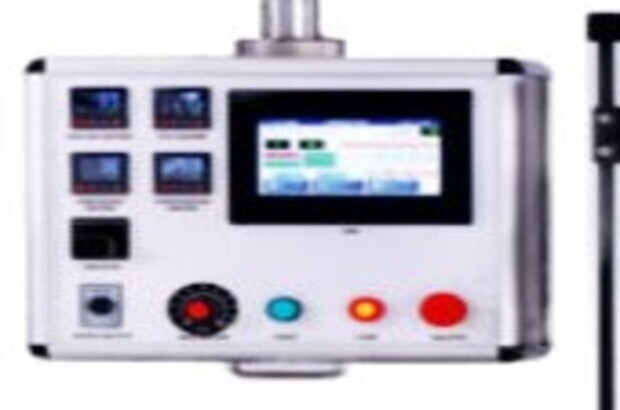

Equipped with Siemens PLC and touch panel. This allows to optimise the process and apply relevant parameters.

Technical Specifications

DESCRIPTIONModel: 150 Plus
PVC Base Film Width Max110 mm max.
PVC Film Thickness Max0.25 - 0.4 mm Max.
PVC Reel Dia.440 mm Max.
Sealing Foil Width106 mm
Format Area110mm X 100 mm
Forming Depth16 mm
Max. OutputRound Shape 140 packs/Min
Machine Dimensions in mmL: 2300 | W: 950 | H: 1800
Machine Weight950 kg. (Approx)

Packaging Materials

Base Material: PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP

Lidding Material: Aluminum with Heat Sealable lacquer coating.

Machine Layout

Machine Layout

Utilities Requirement

Compressed Air: 11 CFM dry air, 6.0 kgs/cm² pressure

Water Cooler: 150 Liters/Hour, 15°C - 20°C, 2.5 kgs/cm²

Electrical Power: 8.5 kW, 415V, 50 Hz, 3 Phase
