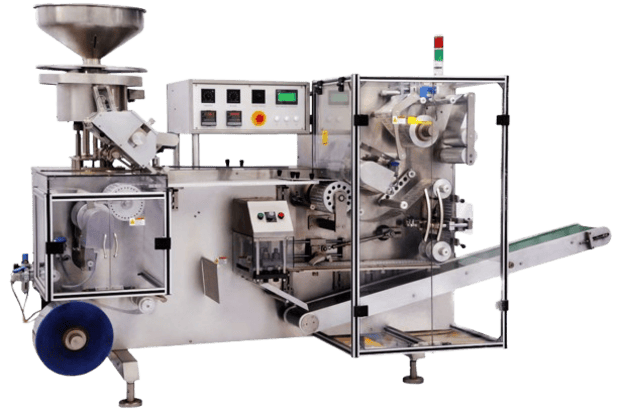

240 PLUS

Thermo-Form Blister Packing Machines

Innojet's Lab & Pilot Granulation Equipment: Leading the Way

Control of the four critical variables during the granulation: mixing speed / binding liquid flow

Three interchangeable bowls of 2, 5, and 10 litres.

Equipped with Siemens PLC and touch panel. This allows to optimise the process and apply relevant parameters.

DESCRIPTION	Model: 240 Plus
PVC Base Film Width	210 mm Max.
PVC Base Film Thickness	0.25 - 0.4 mm Max.
Sealing Foil Width	206 mm Max.
Sealing Foil Thickness	0.02 - 0.04 mm Max.
Format Area	210 mm X 100 mm
Forming Depth	16 mm
Max. Output	Round Shape 240 packs/min & Oval Shape 140 packs/min

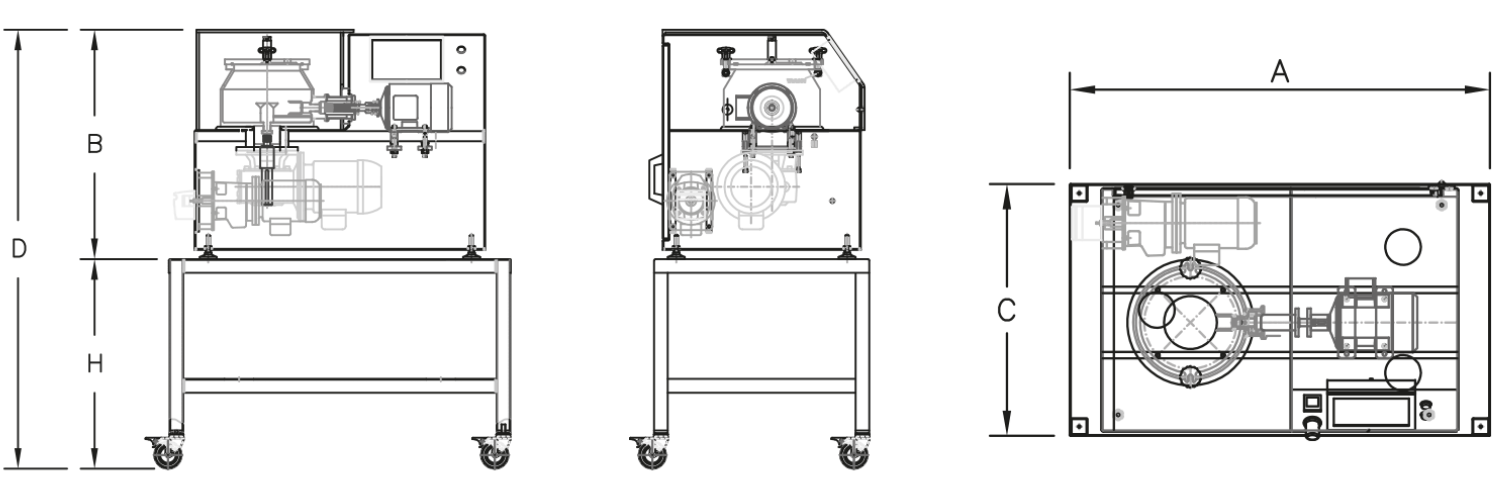

Machine Dimensions in mm	L: 3100 \| W: 1100 \| H: 2000
Machine Weight	1150 kg. (Approx)

Base Material: PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP

Lidding Material: Aluminum with Heat Sealable Lacquer Coating.

Compressed Air: 7 CFM dry air at pressure 6.0 kgs / cm²

Water Cooler: 150 Liters / Hour Temperature 15°C to 20°C @pressure 2.5 kg/cm²

Electrical Power: 7.5 kW, 415 VAC, 50 Hz, 3 Phase + N+E.

Earthing Cable: Copper 2.5 mm² (Minimum)
