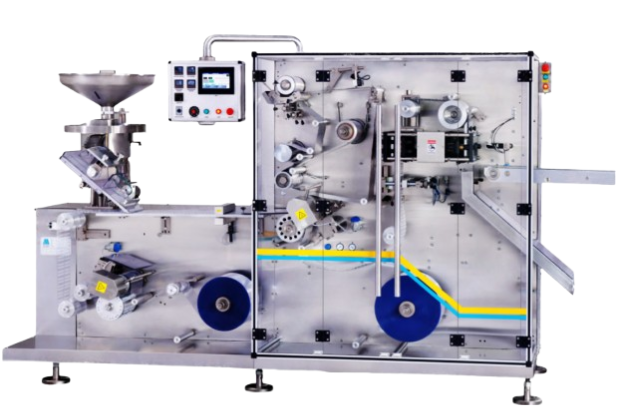

250 EVO

Thermo-Form Blister Packing Machines

Innojet's Lab & Pilot Granulation Equipment: Leading the Way

Control of the four critical variables during the granulation: mixing speed / binding liquid flow

Three interchangeable bowls of 2, 5, and 10 litres.

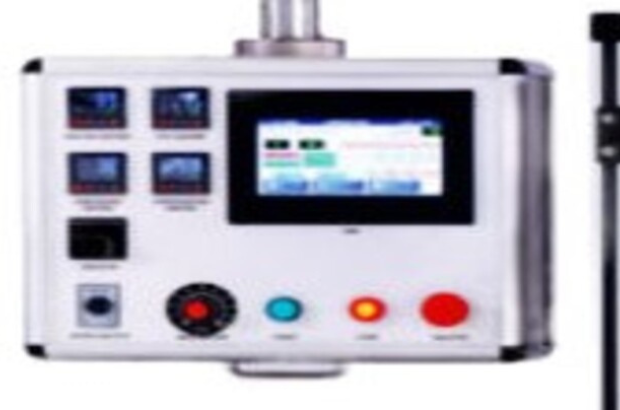

Equipped with Siemens PLC and touch panel. This allows to optimise the process and apply relevant parameters.

DESCRIPTION	Model: 250 EVO
PVC Base Film Width	238 mm Max.
PVC Base Film Thickness	0.25 - 0.4 mm Max.
Sealing Foil Width	234 mm Max.
Sealing Foil Thickness	0.02 - 0.04 mm Max.
Format Area	238 mm X 100 mm
Forming Depth	16 mm
Max. Output	Round Shape 240 packs/min & Oval Shape 210 packs/min
Machine Dimensions in mm	L: 3700 \| W: 1150 \| H: 1800
Machine Weight	1550 kg. (Approx)

Base Material: PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP

Lidding Material: Aluminum with Heat Sealable lacquer coating.

Compressed Air: 11 CFM dry air, 6.0 kgs/cm² pressure

Water Cooler: 150 Liters/Hour, 15°C - 20°C, 2.5 kgs/cm²

Electrical Power: 8.5 kW, 415V, 50 Hz, 3 Phase
