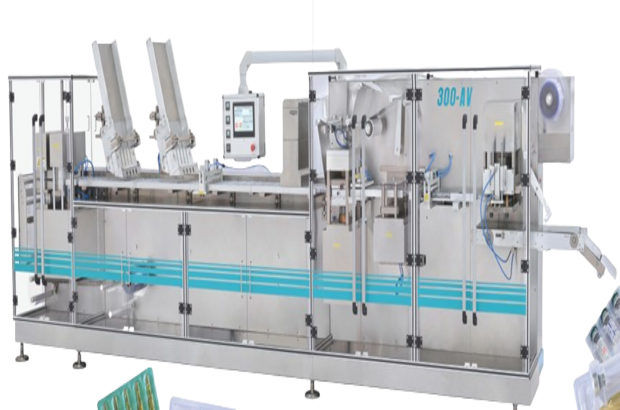

300 AV

High Speed Deep Form Blister Packing Machine

High Speed Deep Form Blister Packing Machine

Innojet's Lab & Pilot Granulation Equipment: Leading the Way

300 AV
300 AV

Key Features

Feature Image
Control of the four critical variables during the granulation: mixing speed / binding liquid flow
Feature Image
Three interchangeable bowls of 2, 5, and 10 litres.
Feature Image

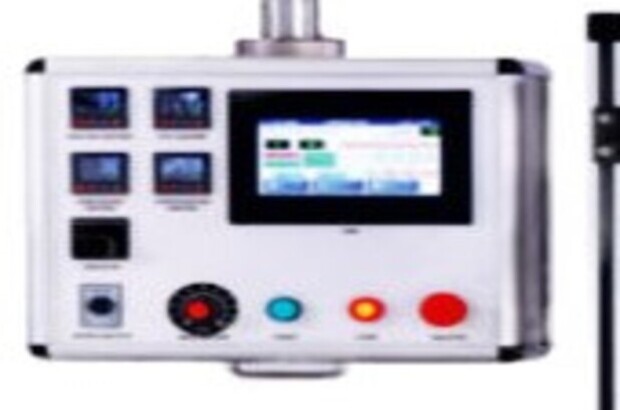

Equipped with Siemens PLC and touch panel. This allows to optimise the process and apply relevant parameters.

Technical Specifications

DESCRIPTIONModel: 300 AV
PVC Base Film Width300 mm max.
PVC Film Thickness Max0.25 - 0.5 mm Max.
Sealing Foil Width300 mm Max.
Sealing Foil Thickness0.02 - 0.04 Max.
Format Area300mm X 170 mm
Forming Depth32 mm
Max. Output30 strokes/minute
Machine Dimensions in mmL: 6500 | W: 1600 | H: 2200
Machine Weight2900 kg. (Approx)

Packaging Materials

Base Material: PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP

Lidding Material: Aluminum with Heat sealable Lacquer coating, Glassine paper.

Machine Layout

Machine Layout

Utilities Requirement

Compressed Air: 40 CFM dry air at pressure 8.0 kgs / cm²

Water Cooler: 210 Liters/Hour Temperature 15°C to 20°C @pressure 2.5kg/cm²

Electrical Power:12.5 KW, 415 v, 50 Hz, 3 Phase + N+E.

Earthing Cable: Copper 2.5 mm² (Minimum)
