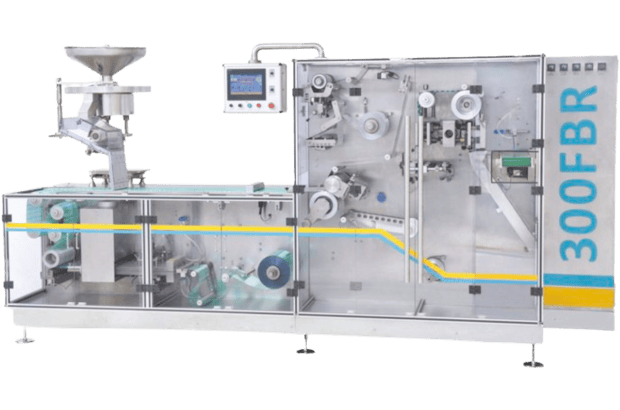

300 FBR

High Speed Flat Forming-Rotary Sealing Thermo-form Blister Packing Machine

High Speed Flat Forming-Rotary Sealing Thermo-form Blister Packing Machine

Innojet's Lab & Pilot Granulation Equipment: Leading the Way

300 FBR
300 FBR

Key Features

Feature Image
Control of the four critical variables during the granulation: mixing speed / binding liquid flow
Feature Image
Three interchangeable bowls of 2, 5, and 10 litres.
Feature Image
Equipped with Siemens PLC and touch panel. This allows to optimise the process and apply relevant parameters.

Technical Specifications

DESCRIPTIONModel: 300 FBR
PVC Base Film Width227 mm Max.
PVC Base Film Thickness0.25 - 0.4 mm Max.
Sealing Foil Width227 mm Max.
Sealing Foil Thickness0.02 - 0.04 mm Max.
Format Area227 mm X 180 mm
Forming Depth12 mm
Max. Output315 packs/minutes
Machine Dimensions in mmL : 4700 | W : 1200 | H : 1950
Machine Weight2100 kg. (Approx)

Packaging Materials

Base Material: PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP

Lidding Material: Aluminum with Heat Sealable Lacquer Coating.

Machine Layout

Machine Layout

Utilities Requirement

Compressed Air: 17 CFM dry air at pressure 6.0 kgs / cm²

Water Cooler: 150 Liters / Hour Temperature 15°C to 20°C @pressure 2.5 kg/cm²

Electrical Power: 11 kW, 415 VAC, 50 Hz, 3 Phase + N+E.

Earthing Cable: Copper 2.5 mm² (Minimum)
