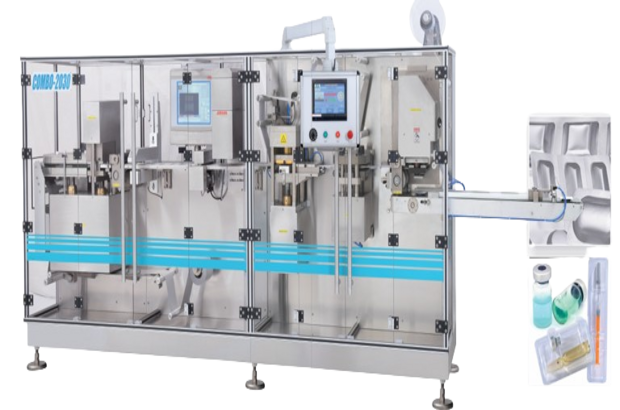

COMBO 2030

Cold-form & Thermo-form Blister Packing Machine

Cold-form & Thermo-form Blister Packing Machine

Innojet's Lab & Pilot Granulation Equipment: Leading the Way

COMBO 2030
COMBO 2030

Key Features

Feature Image
Control of the four critical variables during the granulation: mixing speed / binding liquid flow
Feature Image
Three interchangeable bowls of 2, 5, and 10 litres.
Feature Image

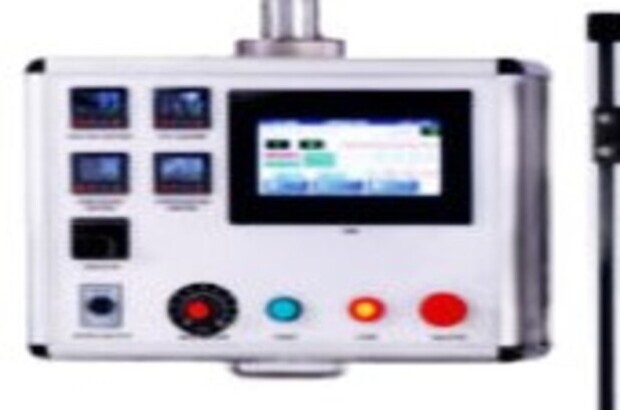

Equipped with Siemens PLC and touch panel. This allows to optimise the process and apply relevant parameters.

Technical Specifications

DESCRIPTIONCOLD FORMINGTHERMO FORMING
Base Film Width Max.Alu. Foil 190 mmPvc Film 180 mm
Blister Film Thickness Max.Alu. 0.13 - 0.24 mmPvc 0.20 - 0.50 mm
Base Film Reel Dia.Alu. 560 mPvc 560 mm
Sealing Foil Thickness Max.0.02 - 0.04 mm0.02 - 0.04 mm
Format Area190 mm X 140 mm180 mm X 140 mm
Forming Depth20 mm26 mm
Max. Output30 strokes/minutes30 strokes/minutes
Machine Dimensions in mm.L: 4570 | W: 1800 | H: 2150
Machine Weight2200kg. (Approx)

Packaging Materials

Base Material: ALU-ALU/PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP.

Lidding Material: Aluminum with Heat Sealable Lacquer Coating.

Machine Layout

Machine Layout

Utilities Requirement

Compressed Air: 35 CFM dry air at pressure 8.0 kgs / cm²

Water Cooler: 150 Liters / Hour 15°C to 20°C @pressure 2.5 kg/cm²

Electrical Power: 10.5 kW, 415 V, 50 Hz , 3 Phase + N+E.

Earthing Cable: Copper, 2.5 mm² (Minimum).
