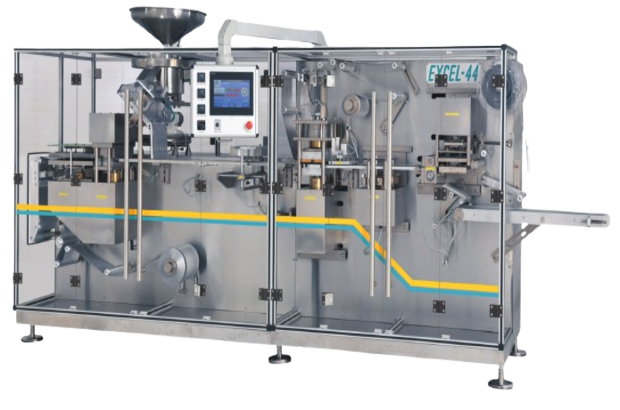

EXCEL 44

Blister Packing Machine Model.

Blister Packing Machine Model.

Innojet's Lab & Pilot Granulation Equipment: Leading the Way

EXCEL 44
EXCEL 44

Key Features

Feature Image
Control of the four critical variables during the granulation: mixing speed / binding liquid flow
Feature Image
Three interchangeable bowls of 2, 5, and 10 litres.
Feature Image

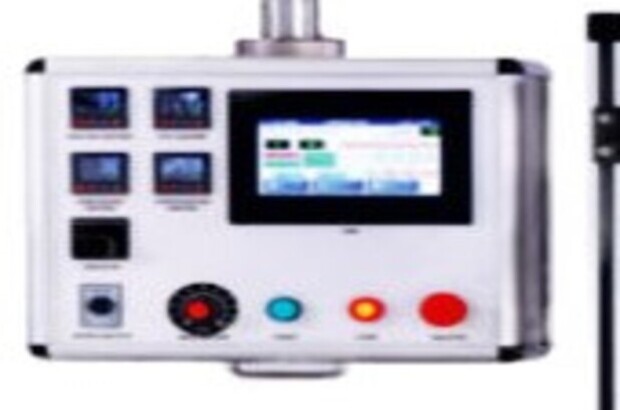

Equipped with Siemens PLC and touch panel. This allows to optimise the process and apply relevant parameters.

Technical Specifications

DESCRIPTIONCOLD FORMINGTHERMO FORMING
Base Film Width Max.Alu. Foil 227 mmPvc Film 227 mm
Blister Foil Thickness Max.Alu. 0.13 - 0.15 mmPvc 0.20 - 0.40 mm
Base Film Reel Dia.Alu. 440 mmPvc 440 mm
Sealing Foil Thickness Max0.02 - 0.04 mm0.02 - 0.04 mm
Format Area227 mm X 140 mm227 mm X 140 mm
Forming Depth12 mm12 mm
Max. Output35 strokes/minutes35 strokes/minutes
Machine Dimensions in mm.L: 4250
W: 1100
H: 1900 mm
Machine Weight2100 Kg. (Approx)

Packaging Materials

Base Material: PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP/ALU-ALU.

Lidding Material: Aluminium with Heat Sealable Lacquer Coating.

Machine Layout

Machine Layout

Utilities Requirement

Compressed Air: 17 CFM dry air at pressure 6.0 kgs / cm²

Water Cooler: 150 Liters / Hour 15°C to 20°C @pressure 2.5 kg/cm²

Electrical Power: 10 kW, 415 V, 50 Hz , 3 Phase + N+E.

Earthing Cable: Copper, 2.5 mm² (Minimum).
