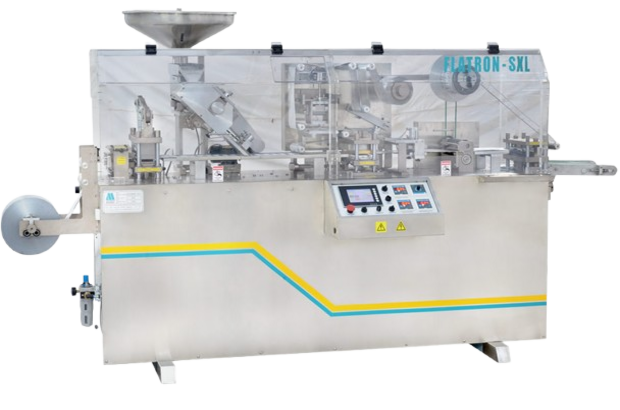

FLATRON SXL
FLATRON SXL

Key Features

Feature Image
Control of the four critical variables during the granulation: mixing speed / binding liquid flow
Feature Image
Three interchangeable bowls of 2, 5, and 10 litres.
Feature Image

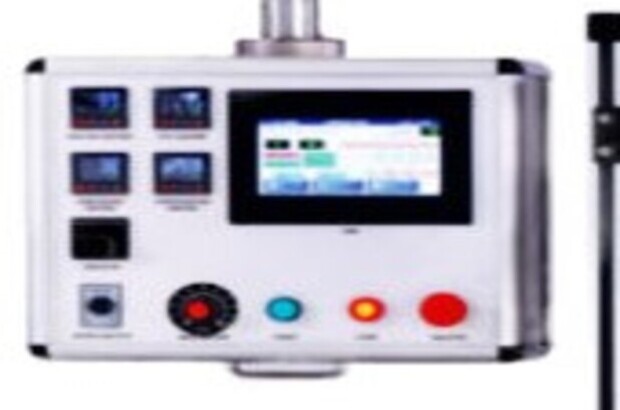

Equipped with Siemens PLC and touch panel. This allows to optimise the process and apply relevant parameters.

Technical Specifications

DESCRIPTIONCOLD FORMINGTHERMO FORMING
Base Film Width Max.Alu. Foil 150 mm
Base Film Thickness Max.Alu. 0.13 - 0.15 mm
Base Film Reel Dia.Alu. 440 mm
Sealing Foil Thickness Max.0.02 - 0.04 mm
Format Area150 mm X 100 mm
Forming Depth12 mm
Max. Output35 strokes/minutes
Machine Dimensions in mm.L: 3000
W: 1300
H: 1700 mm
Machine Weight1050 kg. (Approx)

Packaging Materials

Base Material: PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP/ALU-ALU.

Lidding Material: Aluminum with Heat Sealable Lacquer Coating.

Machine Layout

Machine Layout

Utilities Requirement

Compressed Air: 27 CFM dry air at pressure 8.0 kgs / cm²

Water Cooler: 150 Liters / Hour 15°C to 20°C @pressure 2.5 kg/cm²

Electrical Power: 5.0 kW, 415 V, 50 Hz , 3 Phase + N+E.

Earthing Cable: Copper, 2.5 mm² (Minimum).
