VIALVAC 4D
VIALVAC 4D

Key Features

Feature Image

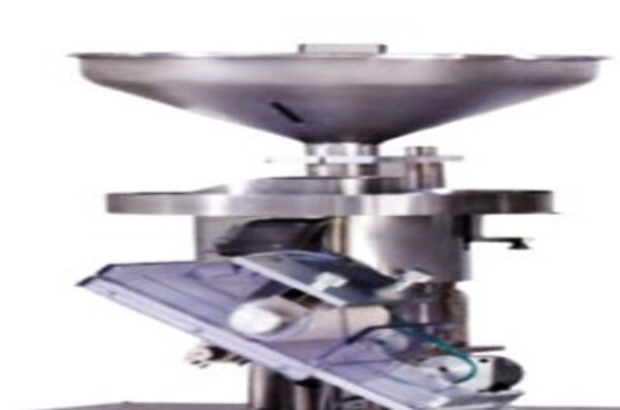

Three interchangeable bowls of 2, 5, and 10 litres.
Feature Image
Control of the four critical variables during the granulation: mixing speed / binding liquid flow
Feature Image

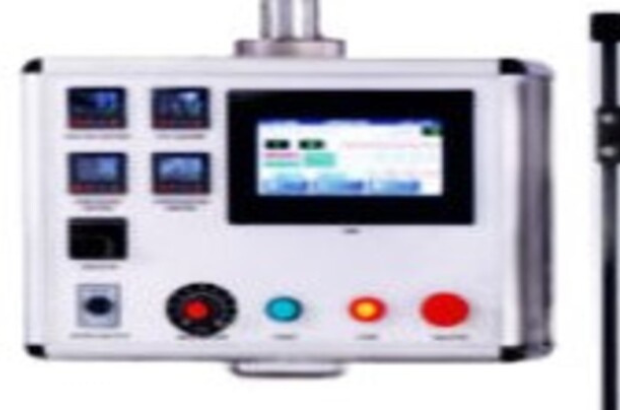

Equipped with Siemens PLC and touch panel. This allows to optimise the process and apply relevant parameters.

Technical Specifications

DESCRIPTIONModel: VIALVAC 4D
PVC Base Film Width185 mm Max.
PVC Base Film Thickness0.25 - 0.5 mm Max.
Sealing Foil Width185 mm Max.
Sealing Foil Thickness0.02 - 0.04 mm Max.
Format Area185 mm X 130 mm
Forming Depth36 mm
Max. Output35 strokes/minutes
Machine Dimensions in mm.L : 4500 | W : 1150 | H : 1600
Machine Weight1950 kg. (Approx)

Packaging Materials

Base Material: PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP

Lidding Material: Aluminum with Heat sealable Lacquer coating, Glassine paper.

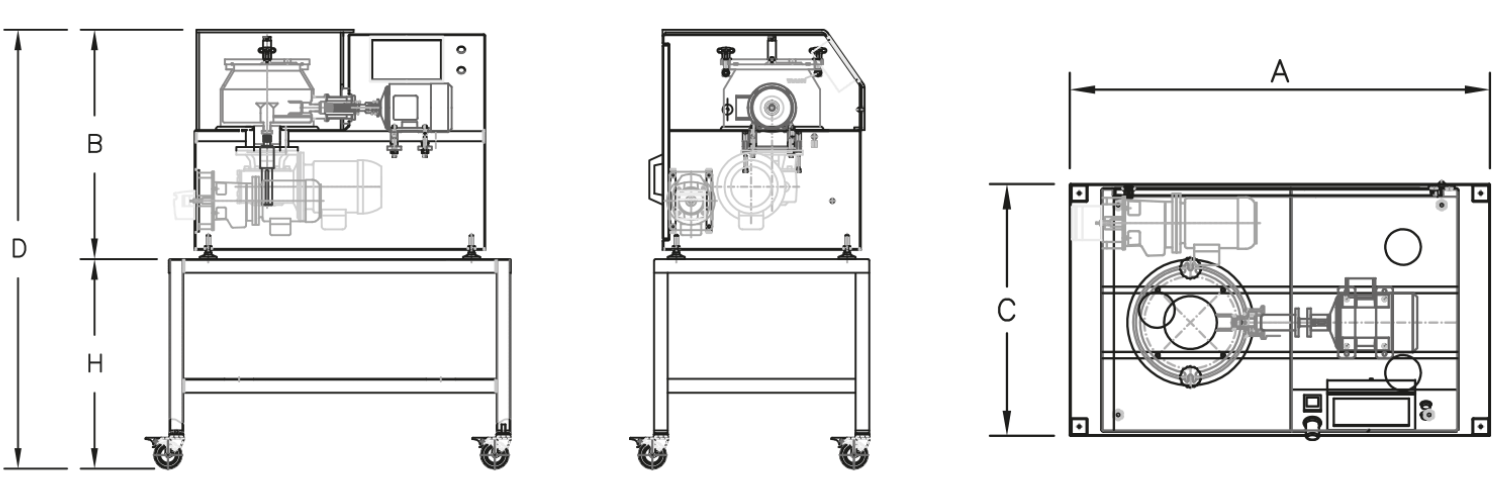

Machine Layout

Machine Layout

Utilities Requirement

Compressed Air: 22 CFM dry air at pressure 8.0 kgs / cm²

Water Cooler: 150 Liters/Hour Temperature 15°C to 20°C @pressure 2.5kg/cm²

Electrical Power: 8.5 kW, 415V, 50 Hz, 3 Phase

Earthing Cable: Copper 2.5 mm² (Minimum)
