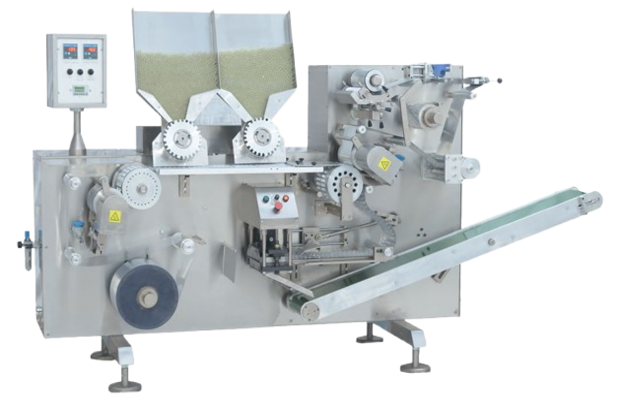

VIALVAC II
VIALVAC II

Key Features

Feature Image
Control of the four critical variables during the granulation: mixing speed / binding liquid flow
Feature Image
Three interchangeable bowls of 2, 5, and 10 litres.
Feature Image

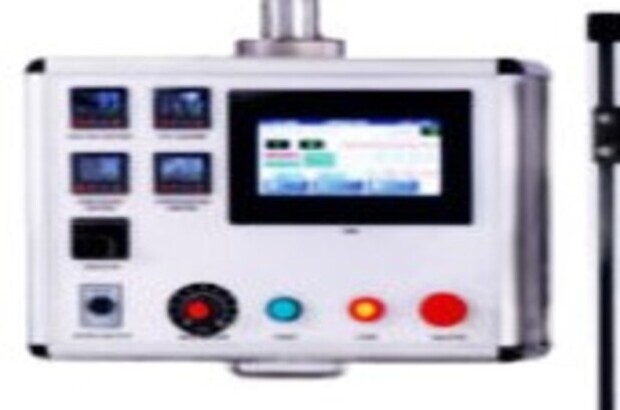

Equipped with Siemens PLC and touch panel. This allows to optimise the process and apply relevant parameters.

Technical Specifications

DESCRIPTIONModel : VIALVAC-II
PVC Base Film Width210 mm Max.
PVC Base Film Thickness0.25 - 0.4 mm Max.
Sealing Foil Width206 mm Max.
Sealing Foil Thickness0.02 - 0.04 mm Max.
Format Area210 mm X 126 mm
Forming Depth20 mm
Max Output35 Strokes/minute
Machine Dimensions in mmL : 2900 | W : 1100 | H : 1800
Machine Weight1100 kg. (Approx)

Packaging Materials

Base Material: PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP

Lidding Material: Aluminum with Heat Sealable lacquer Coating, Glassine paper.

Machine Layout

Machine Layout

Utilities Requirement

Compressed Air: 7 CFM dry air, 6.0 kgs/cm² pressure

Water Cooler: 150 Liters/Hour, 15°C - 20°C, 2.5 kgs/cm²

Electrical Power: 7.5 kW, 415V, 50 Hz, 3 Phase

Earthing Cable: Copper 2.5 mm² (Minimum)
