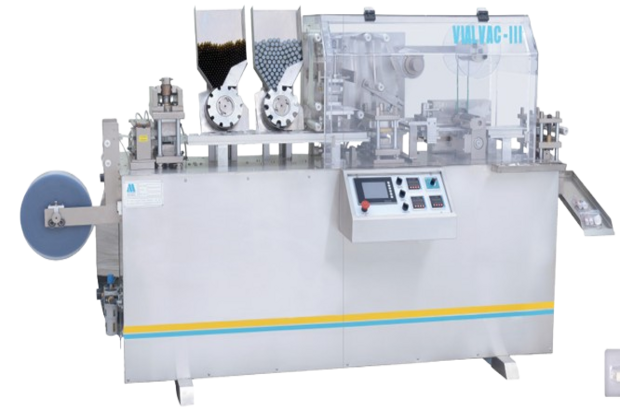

VIALVAC III
VIALVAC III

Key Features

Feature Image
Control of the four critical variables during the granulation: mixing speed / binding liquid flow
Feature Image

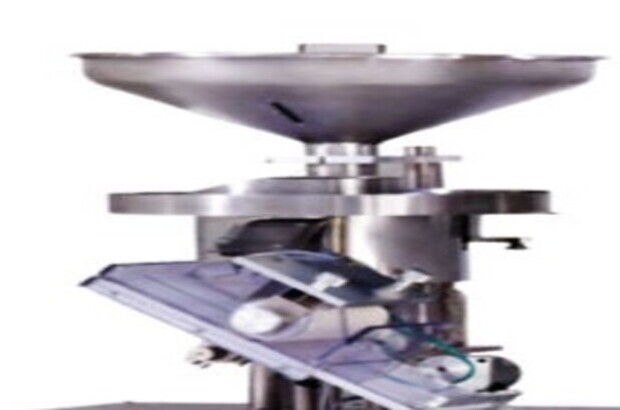

Three interchangeable bowls of 2, 5, and 10 litres.
Feature Image

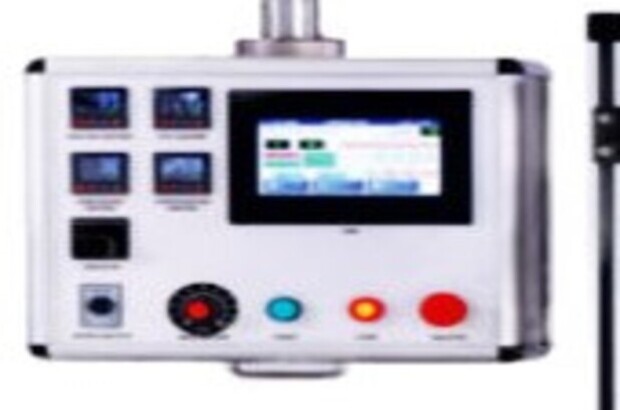

Equipped with Siemens PLC and touch panel. This allows to optimise the process and apply relevant parameters.

Technical Specifications

DESCRIPTIONModel : VIALVAC-II
PVC Base Film Width170 mm Max.
PVC Base Film Thickness0.25 - 0.4 mm Max.
Sealing Foil Width170 mm Max.
Sealing Foil Thickness0.02 - 0.04 mm Max.
Format Area170 mm X 95 mm
Forming Depth30 mm
Max. Output22 strokes/minutes
Machine Dimensions in mm.L : 3000 | W : 1300 | H : 1700
Machine Weight1100 kg. (Approx)

Packaging Materials

Base Material: PVC/PVC-PVDC/ACCLAR/TRIPLEX/PP

Lidding Material: Aluminum with Heat sealable Lacquer coating, Glassine paper.

Machine Layout

Machine Layout

Utilities Requirement

Compressed Air: 30 CFM dry air at pressure 8.0 kgs / cm²

Water Cooler: 150 Liters/Hour, 15°C - 20°C, 2.5 kgs/cm²

Electrical Power: 5.5 kW, 415V, 50 Hz, 3 Phase

Earthing Cable: Copper 2.5 mm² (Minimum)
